Solve industry pain points through technological innovation, and comprehensively enhance construction experience and project value
Fully automatic marking operation, 8 times more efficient than traditional manual work, greatly shortening construction period.
Integrated multi-modal positioning technology including GNSS-RTK, optical laser and IMU, marking accuracy up to ±1cm, no cumulative error.
Human-machine collaboration reduces occupational disease risks; high-density lithium batteries replace gas tanks, achieving zero emissions and zero explosion risks.
All marking operations can be completed with a tablet, simple operation, greatly reducing labor intensity and skill threshold.
Exclusive integration of six key processes: cleaning, dust blowing, positioning, primer spraying, hot melt spraying and glass bead spraying, realizing one-stop closed-loop operation.
Perfect for highways, provincial roads, municipal roads, parking lots, industrial parks and other scenarios, strong versatility.
Intelligent marking technology, reshaping road construction efficiency

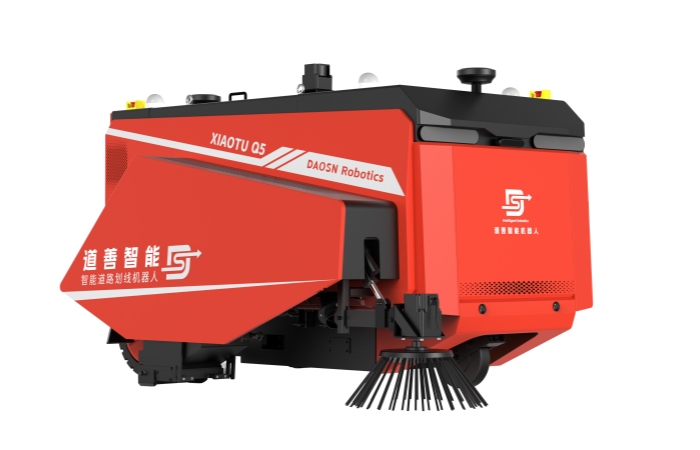

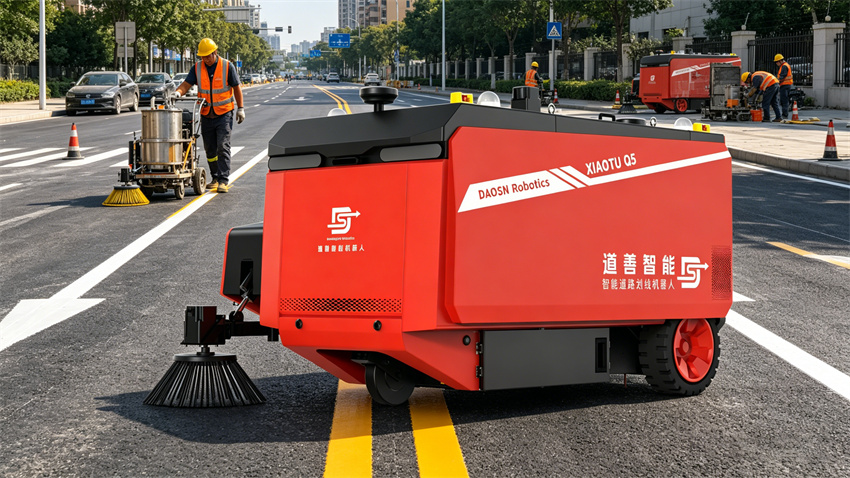

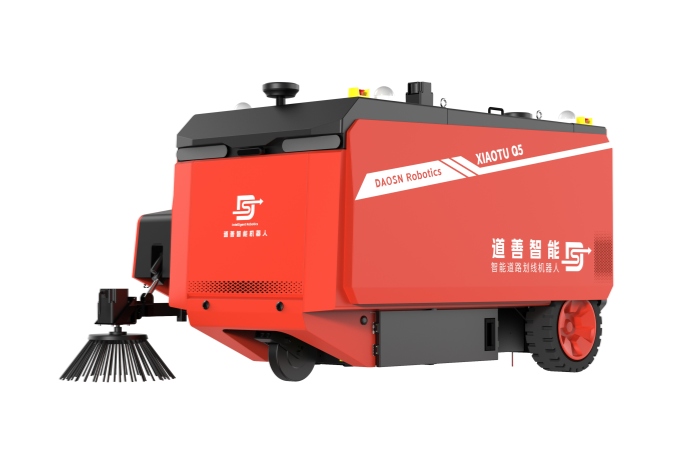

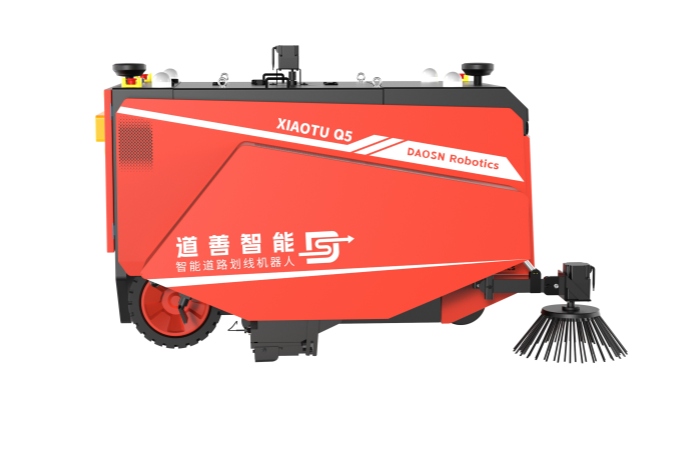

XiaoTu Q5 is the world's first intelligent hot-melt marking robot. It integrates key processes such as sweeping, dust blowing, positioning, primer spraying, hot-melt adhesive spraying, and glass bead application to achieve fully automated hot-melt marking operations. It can efficiently and accurately spray any complex graphics (straight lines, dashed lines, curves, text, arrows, guide stripes, etc.) from CAD drawings directly onto the road surface, bringing revolutionary changes to the field of road construction.
Comprehensive analysis of product performance, demonstrating hardcore technical strength
| Parameter Category | Detailed Specification | Parameter Category | Detailed Specification |
|---|---|---|---|
| Overall Weight | 600kg | Marking Accuracy | ±1cm |
| Overall Dimension | 1840 × 1200 × 1150 mm | Marking Speed | 0.8 m/s |
| Endurance Time | 8h, two sets of batteries used alternately | Travel Speed | 1.5 m/s |
| Application Scenarios | Expressways, national & provincial highways, municipal roads, outdoor parking spaces, industrial parks | Marking Content | Straight lines, dashed lines, curves, U-turns and other complex traffic markings |
| IP Rating | IP54 | Obstacle Crossing Capacity | Can cross curbs or joints ≤5cm |
| Safety Protection | Visual obstacle avoidance, ultrasonic obstacle stopping | Climbing Capacity | Slope ≤15° |
CE Certification, Air Transport Certificate, Sea Transport Certificate
•Successfully applied in many key projects across the country
For the marking project on the demonstration road section, long-distance continuous operations were carried out with precision and high efficiency, earning high recognition from the client.
In the marking project in Guicheng, Foshan, the efficiency has been increased by 8 times, and the delivery cycle has been shortened by 70%.
The municipal road hot-melt marking construction validated the stability of the equipment in complex traffic environments.
